PCB single point load cell

Price 32000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

PCB single point load cell Specification

Application
Bench and platform scales, high-speed checkweighers, marine scales, multi-head weighers

Color
silver

Usage
Bench and platform scales, high-speed checkweighers, marine scales, multi-head weighers

Capacity
50-1000 Kg

Classification
PCB

Weight
2 kg Kilograms (kg)

Product Type
Single point Load cell

Material
Alloy steel

Output
Switching Transducer

Type
Single pont Load cell

About PCB single point load cell

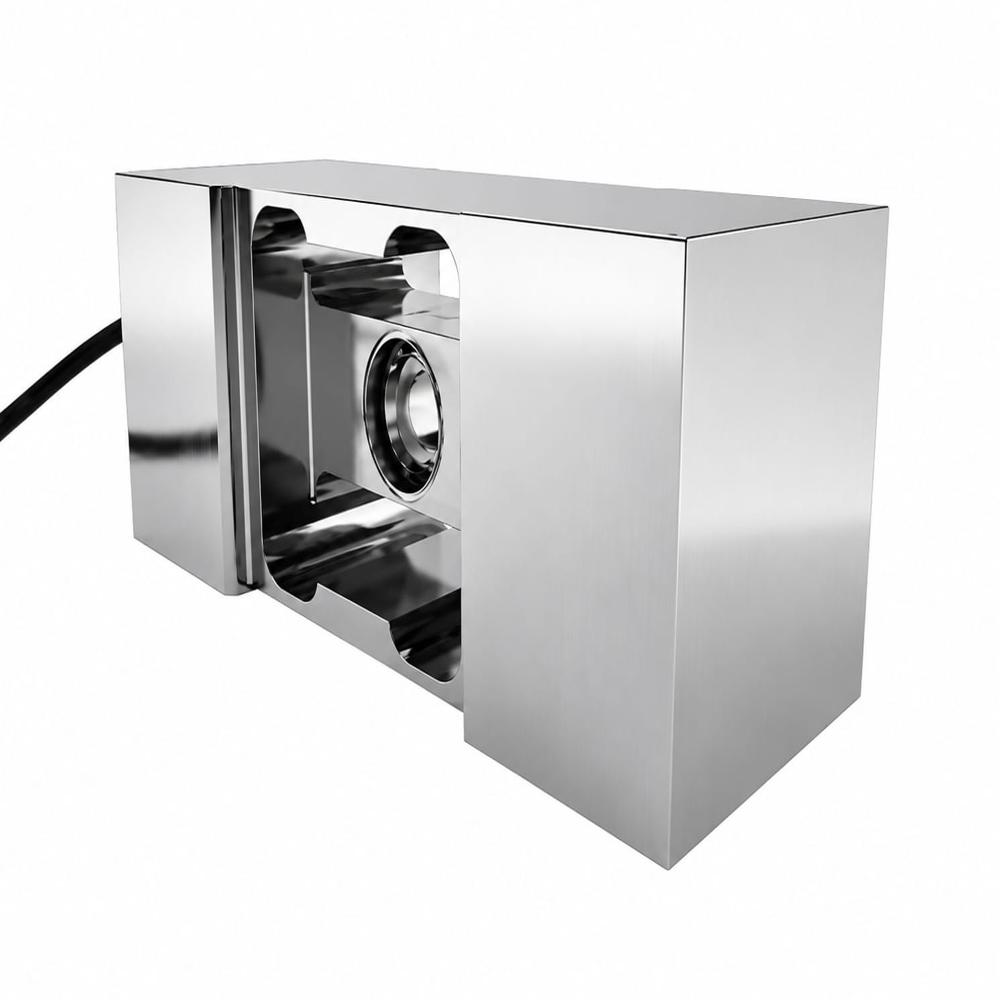

PCB single point load cell

product description
The PCB single point load cell is the high capacity end of the hermetically sealed load cell range from Flintec. Providing all of the high accuracy performance for trade approved weighing scales but available in a wide range of capacities from 50kg through to 1T all in one sensor body size. Full stainless-steel construction ensure the PCB load cell is capable of surviving the tough environments in food and chemical processing applications.

applications
Bench and platform scales, high-speed checkweighers, marine scales, multi-head weighers.
key features

Stainless steel construction, hermetically sealed to IP68
For platforms sizes of up to 1,000 x 1,000mm
High accuracy, high input resistance
Wide range of capacities from 50kg to 1,000kg
Integral mounting spacer

approvals
OIML approval to C3 and C3 MI6 (Y = 12,500)
NTEP approval to 5,000 intervals, Class III
ATEX hazardous area approval for zones 0, 1, 2, 20, 21 and 22
FM hazardous area approval

accessories + options
Compatible range of electronics

specifications

Maximum capacity (Emax)

50 / 100 / 250 / 500 / 1,000

Accuracy class according to OIML R60

(GP)

C3 MI 6

Maximum number of verification intervals (nLC)

n.a.

3,000

Minimum load cell verification interval (vmin)

n.a.

Emax /12,500

Temperature effect on minimum dead load output (TC0)

%*RO/10C

0.0400

0.0112

Temperature effect on sensitivity (TCRO)

%*RO/10C

0.0200

0.0100

Combined error

%*RO

0.0500

0.0200

0.0180

Non-linearity

%*RO

0.0400

0.0166

Hysteresis

%*RO

0.0400

0.0166

0.0083

Creep error (30 minutes) / DR

%*RO

0.0600

Rated Output (RO)

mV/V

2 5%

Zero balance

%*RO

Excitation voltage

5...15

Input resistance (RLC)

1 100 50

Output resistance (Rout)

960 50

Insulation resistance (100 V DC)

5 000

Safe load limit (Elim)

%*Emax

200

Ultimate load

%*Emax

300

Safe side load

%*Emax

100

Maximum platform size; loading acc. to OIML R76

600 x 600 for 50 kg / 800 x 800 for 100 kg / 1,000 x 1,000 for 250...1,000 kg

Maximum off centre distance at maximum capacity

200 for 50 kg / 250 for 100...500 kg / 300 for 1,000 kg

Compensated temperature range

10...+40

Operating temperature range

40...+80 (ATEX 40...+60)

Load cell material

stainless steel 17-4 PH (1.4548)

Sealing

complete hermetic sealing; cable entry sealed by glass to metal header

Protection according EN 60 529

IP68 (up to 2 m water depth) / IP69K

Packet weight

5.4 (50-100kg), 5.7 (250-500kg), 5.8 (1,000kg)

Type	L1	L2	L3	H	W	D	Mounting bolts	Torque 1)
PCB- 50/100/250/500/1,000 kg	25	125	8	19	60	M8 2)	M8 8.8 / PCB- 1,000 kg: M8 12.9	25 Nm
PCBB-250/500/1,000 kg	35	104.5	8	25	57	M12	M12 8.8	90 Nm
PCBC- 50/100/250/500/1,000 kg	35	107	6.75	19	50	M8 2)	M8 8.8	25 Nm
