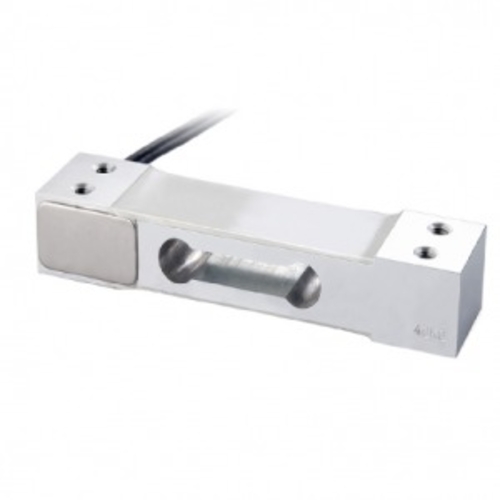

ADI Single Point Load Cell

Name: ADI Single Point Load Cell
Brand: SWASTIK SYSTEMS & SERVICES
Price: 5000.0 INR
Availability: InStock

Price 5000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ADI Single Point Load Cell Specification

Capacity
60 Kg

Weight
1 Kilograms (kg)

Product Type
single point load cell

Dimension (L*W*H)
\(300 \times 300\text{ mm}\) Millimeter (mm)

Material
Alloy steel

Color
silver

Output
Other

Type
single point

Output Voltage
2.0 0.1 Volt (V)

About ADI Single Point Load Cell

The ADI Artech Model 60710 is a low-profile, economical single point load cell designed for off-center loading. Constructed from anodized aluminum, it is primarily used in bench scales, counting scales, postal scales, and small table-top checkweighers

Key Specifications

Specification [1, 2, 3, 4, 5]	Details
Rated Capacities	3, 6, 10, 15, 20, 30, 40, 60, and 80 Kgf
Rated Output (Sensitivity)	\(2.0 \pm 0.1\text{ mV/V}\)
Excitation Voltage	Recommended: 10V DC, Maximum: 15V DC
Non-Linearity	\(< \pm 0.025\% \text{ FSO}\) (Full Scale Output)
Hysteresis	\(< \pm 0.02\% \text{ FSO}\)
Creep (30 mins)	\(< \pm 0.03\% \text{ FSO}\)
Zero Balance	\(\pm 1.0\% \text{ FSO}\)
Input / Output Resistance	Input: \(400 \pm 15\text{ Ohms}\) Output: \(350 \pm 5\text{ Ohms}\)

Mechanical & Environmental Data

Specification [1, 2, 3, 4, 5, 6]	Details
Material	Aluminum Alloy
Safe Overload	150% of Rated Capacity
Ultimate Overload	200% of Rated Capacity
Max. Platform Size	\(300 \times 300\text{ mm}\) (or \(400 \times 400\text{ mm}\) depending on the variation)
Compensated Temp. Range	\(0 \text{ to } 60{\circ}\text{C}\)
Temp. Effect on Zero	\(< 0.0020\% \text{ FSO}/{\circ}\text{C}\)
Temp. Effect on Output	\(< 0.0015\% \text{ FSO}/{\circ}\text{C}\)
