PC6 single point load cell

Name: PC6 single point load cell
Brand: SWASTIK SYSTEMS & SERVICES
Price: 22000.0 INR
Availability: InStock

Price 22000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PC6 single point load cell Specification

Usage
Bench and platform scales, high-speed checkweighers, marine scales, multi-head weighers.

Application
Bench and platform scales, high-speed checkweighers, marine scales, multi-head weighers

Capacity
50-1000 Kg

Product Type
Single pont Load cell

Color
silver

Weight
2 Kilograms (kg)

Voltage
5-15 Volt (v)

Output
Switching Transducer

Accuracy
C3 MI 6 PSI

About PC6 single point load cell

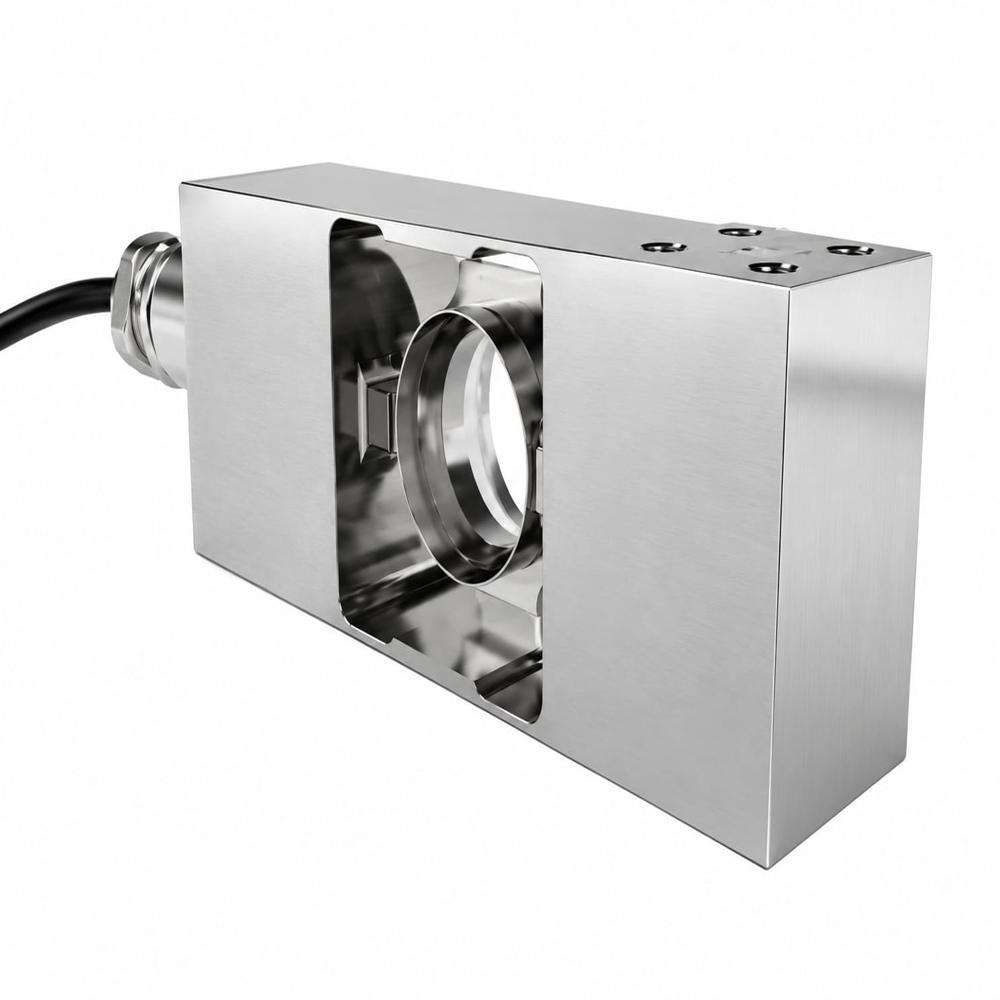

PC6 single point load cell

product description

The PCB single point load cell is the high capacity end of the hermetically sealed load cell range from Flintec. Providing all of the high accuracy performance for trade approved weighing scales but available in a wide range of capacities from 50kg through to 1T all in one sensor body size. Full stainless-steel construction ensure the PCB load cell is capable of surviving the tough environments in food and chemical processing applications.

applications

Bench and platform scales, high-speed checkweighers, marine scales, multi-head weighers.

key features

Stainless steel construction, hermetically sealed to IP68

For platforms sizes of up to 1,000 x 1,000mm

High accuracy, high input resistance

Wide range of capacities from 50kg to 1,000kg

Integral mounting spacer

approvals

OIML approval to C3 and C3 MI6 (Y = 12,500)

NTEP approval to 5,000 intervals, Class III

ATEX hazardous area approval for zones 0, 1, 2, 20, 21 and 22

FM hazardous area approval

accessories + options

Compatible range of electronics

specifications
Maximum capacity (Emax)	kg	50 / 100 / 250 / 500 / 1,000
Accuracy class according to OIML R60	(GP)	C3	C3 MI 6
Maximum number of verification intervals (nLC)	n.a.	3,000
Minimum load cell verification interval (vmin)	n.a.	Emax /12,500
Temperature effect on minimum dead load output (TC0)	RO/10C	0.0400	0.0112
Temperature effect on sensitivity (TCRO)	RO/10C	0.0200	0.0100
Combined error	RO	0.0500	0.0200	0.0180
Non-linearity	RO	0.0400	0.0166	0.0166
Hysteresis	RO	0.0400	0.0166	0.0083
Creep error (30 minutes) / DR	RO	0.0600	0.0166	0.0083
Rated Output (RO)	mV/V	2 5%
Zero balance	RO	5
Excitation voltage	V	5...15
Input resistance (RLC)		1 100 50
Output resistance (Rout)		960 50
Insulation resistance (100 V DC)	M	5 000
Safe load limit (Elim)	Emax	200
Ultimate load	Emax	300
Safe side load	Emax	100
Maximum platform size; loading acc. to OIML R76	mm	600 x 600 for 50 kg / 800 x 800 for 100 kg / 1,000 x 1,000 for 250...1,000 kg
Maximum off centre distance at maximum capacity	mm	200 for 50 kg / 250 for 100...500 kg / 300 for 1,000 kg
Compensated temperature range	C	10...+40
Operating temperature range	C	40...+80 (ATEX 40...+60)
Load cell material	stainless steel 17-4 PH (1.4548)
Sealing	complete hermetic sealing; cable entry sealed by glass to metal header
Protection according EN 60 529	IP68 (up to 2 m water depth) / IP69K
Packet weight	kg	5.4 (50-100kg), 5.7 (250-500kg), 5.8 (1,000kg)

Type	L1	L2	L3	H	W	D	Mounting bolts	Torque 1)
PCB- 50/100/250/500/1,000 kg	25	125	8	19	60	M8 2)	M8 8.8 / PCB- 1,000 kg: M8 12.9	25 Nm
PCBB-250/500/1,000 kg	35	104.5	8	25	57	M12	M12 8.8	90 Nm
PCBC- 50/100/250/500/1,000 kg	35	107	6.75	19	50	M8 2)	M8 8.8	25 Nm
