Rectangular shear beam Load cell

Price 6000.0 INR/ 1

Get a Price/Quote

MOQ : 1 1

Rectangular shear beam Load cell Specification

Color
silver

Weight
2 kg Kilograms (kg)

Classification

Usage
Platform scales and low-profile floor scales

Product Type
Rectangular shear beam

About Rectangular shear beam Load cell

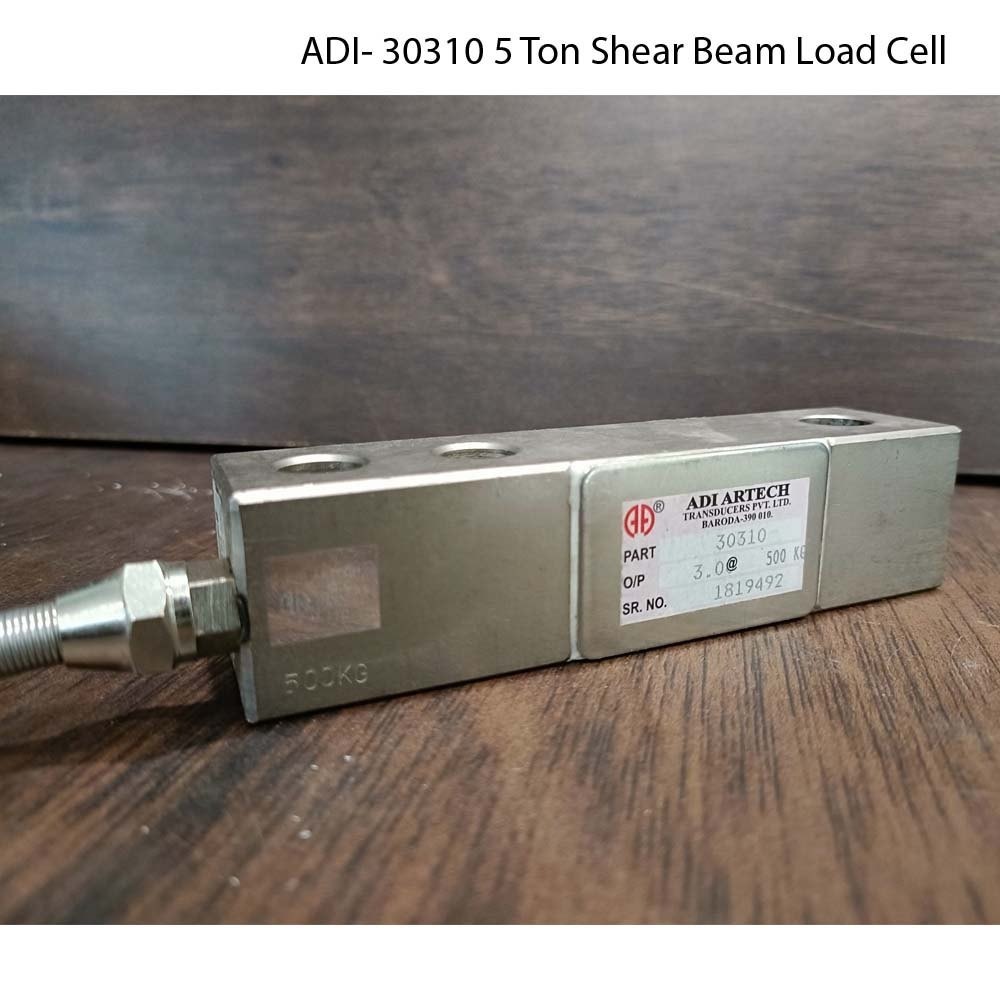

The ADI-30310 (or similar 30310 Load Cell) is a rugged, single-ended rectangular shear beam load cell designed for high-accuracy weight and force measurement. It is widely used in industrial automation, platform scales, and tank or hopper weighing systems.

Key Features & Design

Versatile Capacity: Ranges widely from \(100 \text{ kgf}\) up to \(10,000 \text{ kgf}\) (10 tonnes) to suit small and heavy-duty applications.
Construction Material: Machined from high-tensile alloy tool steel or \(17-4 \text{ PH}\) hardenable stainless steel for excellent shock and overload resistance.
Environmental Protection: Usually sealed for moisture-proofing, typically offering \(IP67\) or optional \(IP68\) (laser-welded) protection for harsh, wash-down environments.
Design Type: Strain-gauge-based sensor. It operates in a bending/shear configuration, making it ideal for multi-cell setups (e.g., supporting four corners of a platform scale)
Standard Electrical Specifications
- Rated Output (Sensitivity): Typically \(3.0 \pm 0.25\% \text{ mV/V}\)
- Safe Overload: Up to \(150\%\) of the rated capacity
- Excitation Voltage: Usually operates on \(10 \text{ V to } 15 \text{ V DC}\)
- Operating Temperature: Fully temperature-compensated, commonly spanning \(0^\circ\text{C to } 60^\circ\text{C}\) [1, 2, 3, 4, 5]
- Common Applications
  Platform scales and low-profile floor scales

  Silo, hopper, and tank weighing systems

  Process and machine automation

  Mechanical-to-electronic scale conversions
