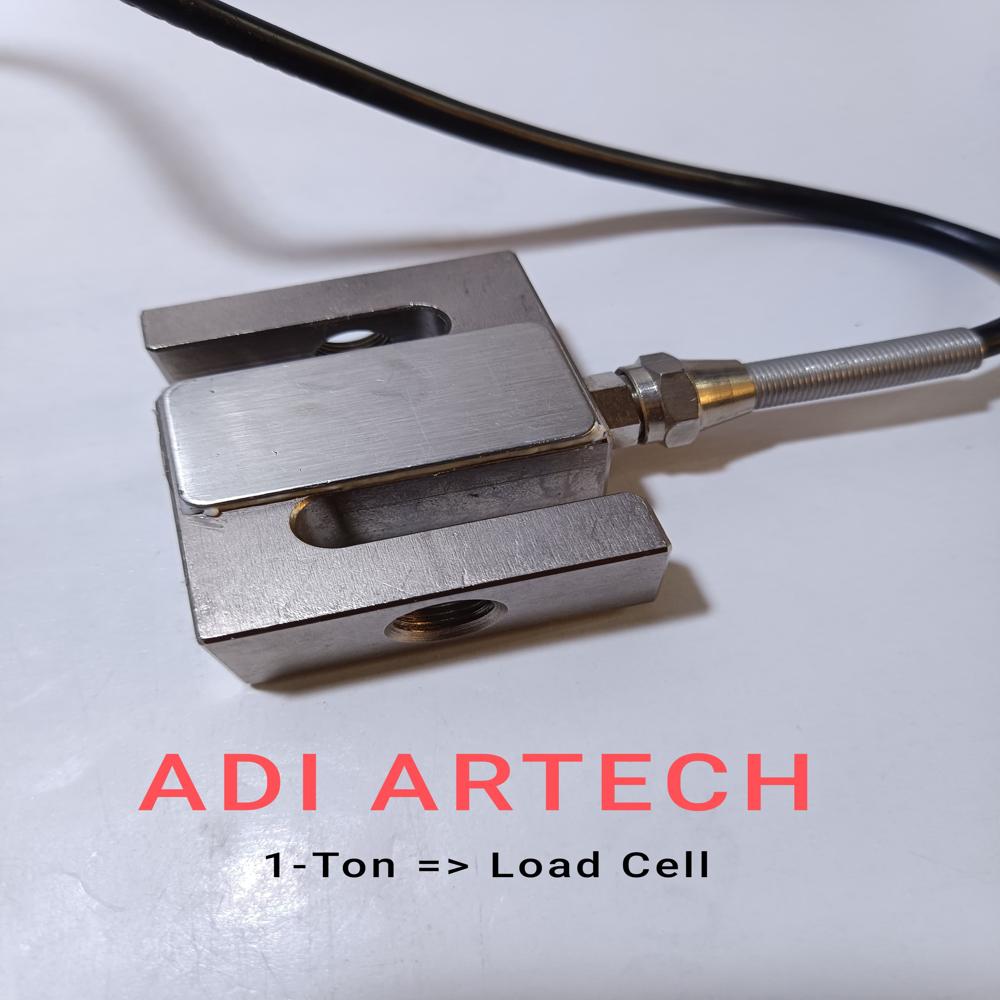

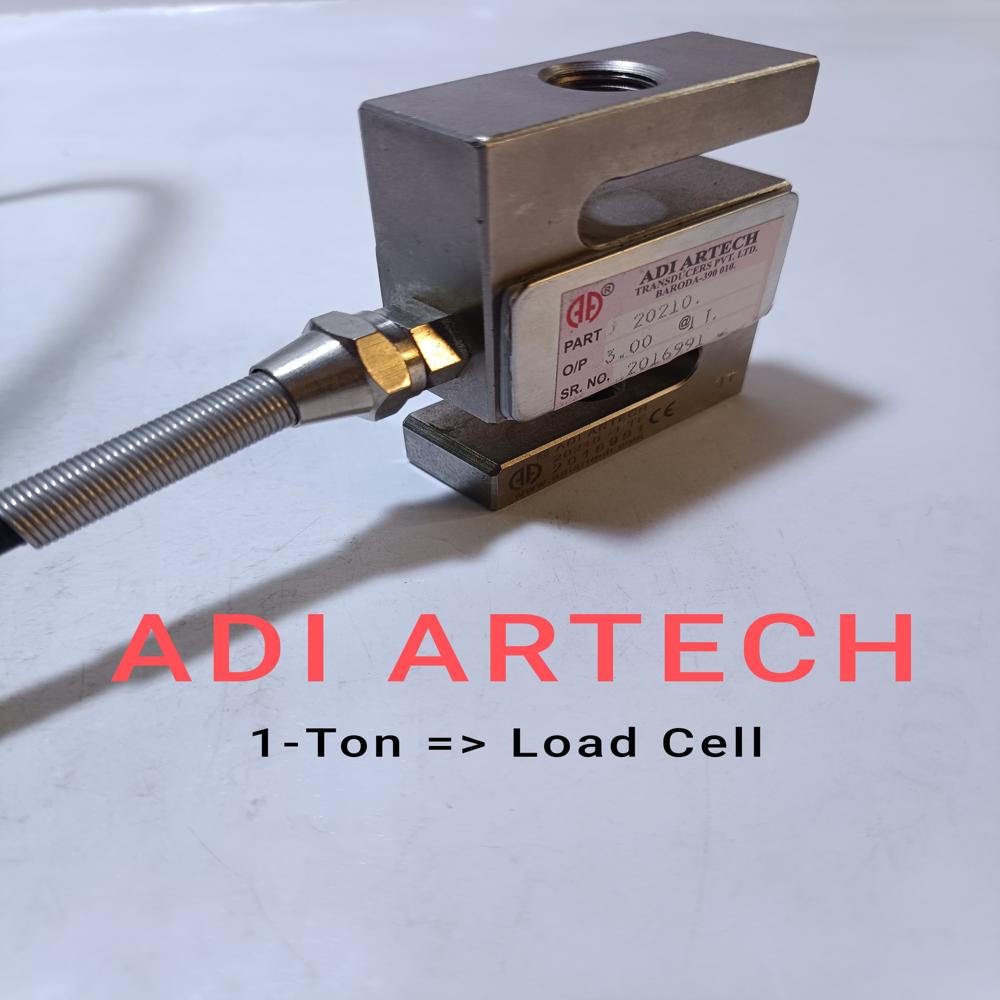

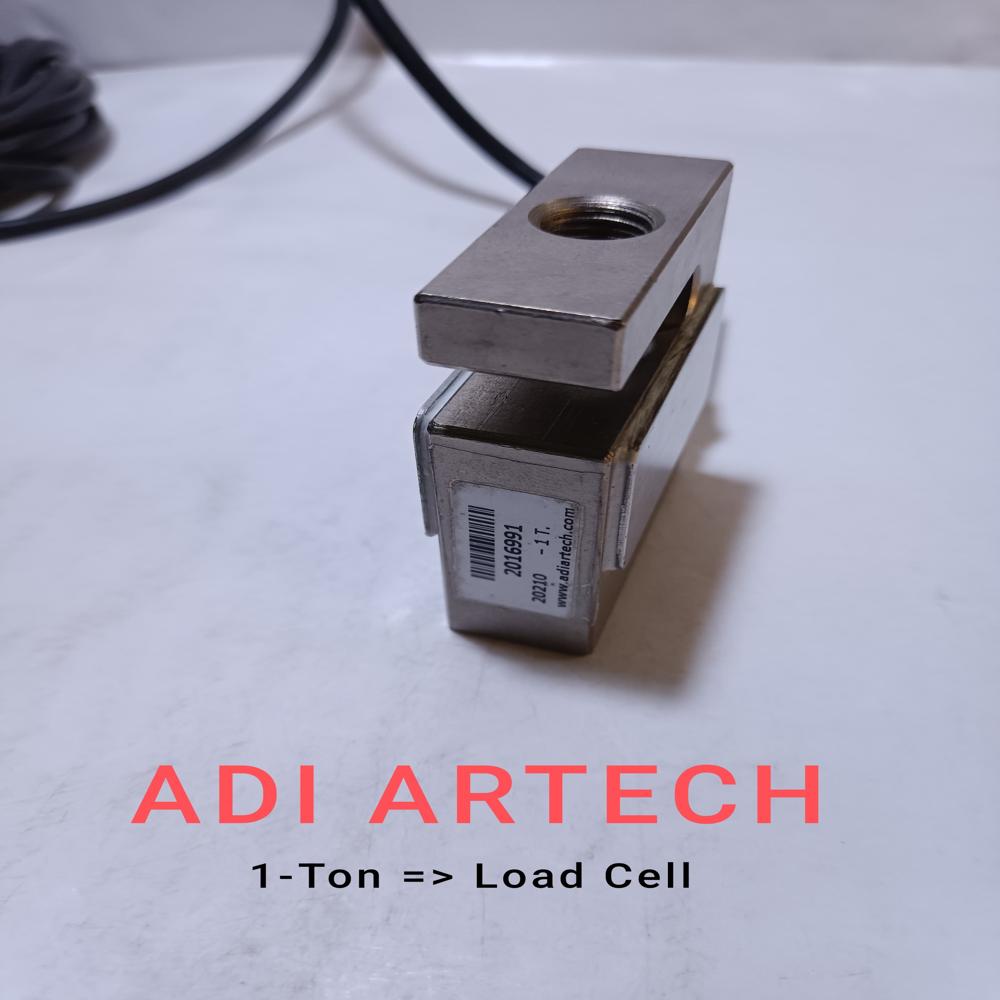

S Type Load cell

Price 4000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

S Type Load cell Specification

Color
silver

Capacity
1 Ton

Product Type
s type loadcelll

Weight
2 Kilograms (kg)

Voltage
10 Volt (v)

Usage
industrial , weighing machine

Output
Digital Sensor

Type
s type

Output Voltage
3-5 Milliamperes (mA)

About S Type Load cell

The ADI Artech 1 Ton (1000 kg) S-Type (Model 20210) load cell is a high-precision strain gauge sensor used for both tension (pull) and compression (push) applications. Crafted from electroless nickel-plated high alloy tool steel, it is widely utilized in hopper weighing, crane scales, and industrial automation

Performance & Specifications

Capacity: 1 Ton (1000 kg)
Rated Output: \(3.0 \pm 0.05\% \text{ mV/V}\)
Accuracy: \(\le \pm 0.025\% \text{ FSO}\)
Non-Linearity & Hysteresis: \(< \pm 0.02\% \text{ FSO}\) each
Safe Overload: \(150\%\) of rated capacity
Ultimate Overload: \(250\%\) of rated capacity [1, 2, 3]
Electrical Specifications
- Input Resistance: \(392 \pm 15\text{ Ohms}\)
- Output Resistance: \(350 \pm 3\text{ Ohms}\)
- Excitation Voltage: \(10\text{V DC}\) (recommended), \(15\text{V DC}\) (maximum)
- Insulation Resistance: \(> 1000\text{ Mega Ohms}\) (at 50V DC) [1, 2]
- Environmental & Physical Data
  - Environmental Protection: IP67 rating (dust-tight and water-resistant)
  - Compensated Temperature: \(10^{\circ}\text{C}\) to \(50^{\circ}\text{C}\)
  - Operating Temperature: \(0^{\circ}\text{C}\) to \(60^{\circ}\text{C}\)
  - Material: Electroless nickel-plated high alloy tool steel
  - Cable: 5-meter, 4-core screened cable
