SS RECTANGULAR SHEAR BEAM LOAD CELL

About SS RECTANGULAR SHEAR BEAM LOAD CELL

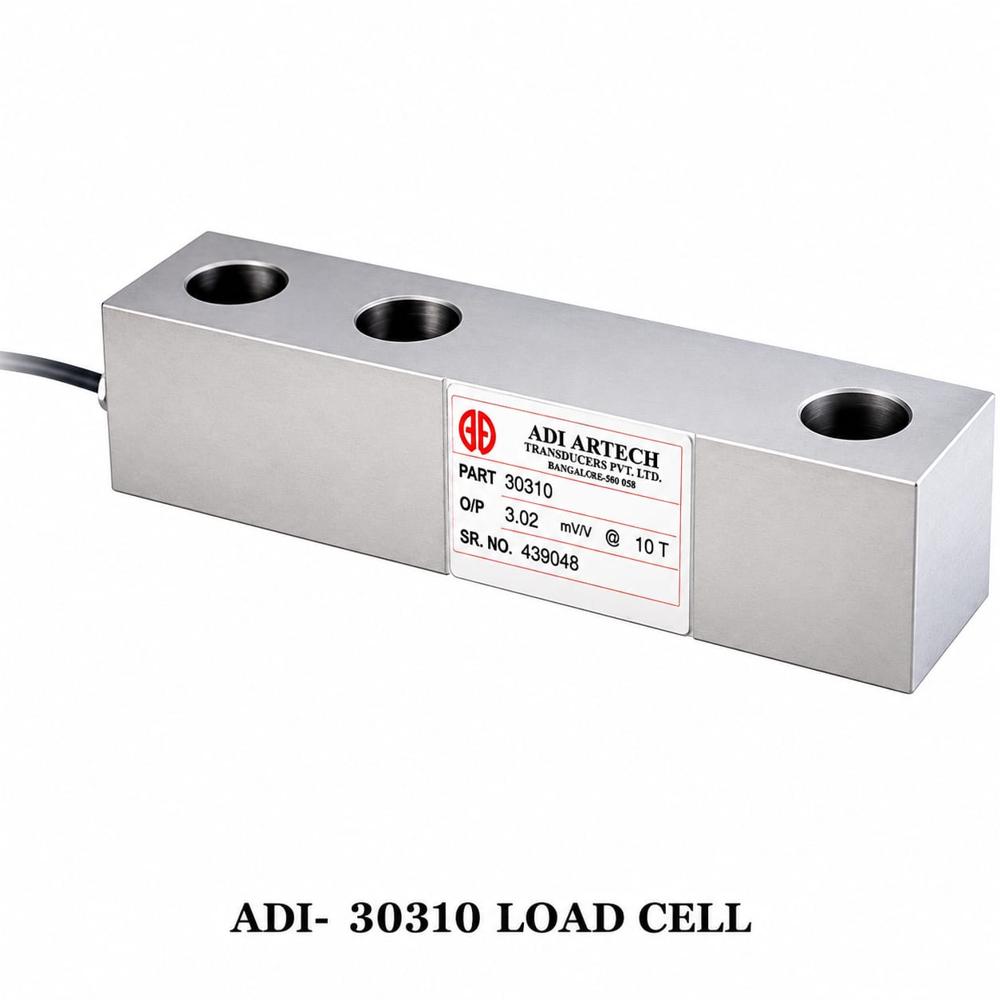

model 30310/30310-SS RECTANGULAR SHEAR BEAM LOAD CELL                                   FEATURES:

         100 Kgf. to 10000 Kgf. Capacities offered

         Complete Environmental Protection - IP67 Class

         Standardized output (3.0 0.25%) available on request

         Also available in stainless steel construction Model - 30310-SS, suitable for hygienic applications like Food, Dairy & Pharmaceutical Industries and Corrosive Chemical

APPLICATIONS:

         Low Profile Floor Scales

         Tank, Hopper & Bag Weighing

         Force & Tension Measurement

         Industrial Automation

         Pallet Scale

DESCRIPTION:

This is a single ended Shear Beam, Strain Gage based, Load Cell designed for Multiple use in low profile platform scales & in tank, bin and hopper weighing systems. It is constructed from high alloy Tool Steel for excellent resistance to shock and overload. The full sealed gasket moisture ingress for use in wash-down areas and is Electroless Nickel plated for corrosion resistance. It is low cost ideal Load Cell for industrial automation applications. Model 30310-SS is provided in Hardenable Stainless Steel-17-4 PH Construction.

PERFORMANCE SPECIFICATION:

Standard Capacities (Kgf.)                  : 100, 150, 200, 250, 300, 500, 750

(Tf)                                                          : 1, 1.5, 2, 2.5, 3, 5, 7.5, 10

Excitation Voltage                                : 10 VDC - Maximum 15 VDC

Nominal Output                                   : 3.0 mV/V

Non-Linearity                                         : < 0.025 % FSO (Full Scale Output)

Hysteresis                                               : < 0.02 % FSO

Non-Repeatability                                 : < 0.01 % FSO

Creep (30 minutes)                                : < 0.03 % FSO

Zero Balance                                           : 1.0 % FSO

Input Resistance                                     : 390 3.5 Ohms

Bridge Resistance                                   : 350 3.5 Ohms

Insulation Resistance                             : > 1000 Mega Ohms at 50 VDC

Safe Overload                                          : 150 % of Rated Capacity

Ultimate Overload                                   : 300 % of Rated Capacity

Allowable Side Load                                : 50 % of Rated Capacity

Side Load Discrimination                        : 500 : 1

Temperature Range                                 : 0-60 C

Compensated Range

Temperature Effect on Output               : < 0.0015 % FSO/C

Temperature Effect on Zero                    : < 0.0020 % FSO/C

Deflection                                                   : 0.5 mm at FSO

Tightening Torque                                     : Please refer table on back page

Finish & Construction                               :30310 - Electroless Nickel Plated Tool Steel

                                                               30310-SS - Hardenable Stainless Steel-17-4 PH

Environmental Protection Class            : IP67
