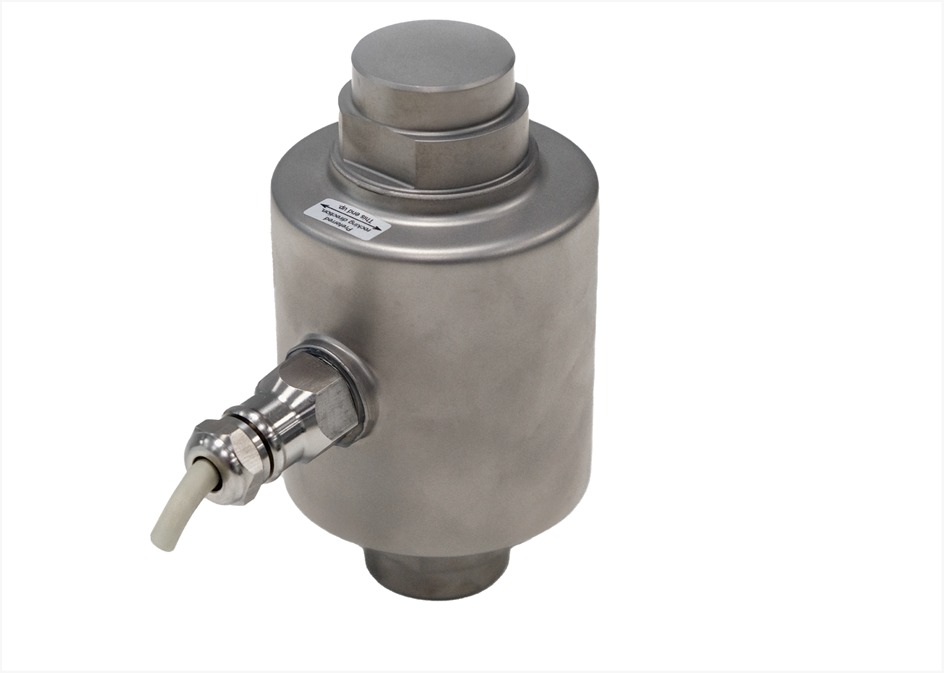

RC3D (new generation) compression load cell

Price 35000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

RC3D (new generation) compression load cell Specification

Capacity
30-50 Ton

Weight
4 Kilograms (kg)

Material
Alloy steel

Usage
Weighbridges, hoppers, tanks and silos.

Product Type
Compression type

Color
silver

Application
Weighbridges, hoppers, tanks and silos.

Output
Switching Transducer

Type
Compression type

About RC3D (new generation) compression load cell

RC3D (new generation) compression load cell

product description

The Flintec RC3D series are digital compression load cells featuring embedded electronics for advanced diagnostics and independent cell communication. Their robust, hermetically sealed (IP68/IP69K) stainless steel construction and rocker column design ensure optimal accuracy in demanding environments. The series offers three distinct connection options to suit any installation.

applications

Weighbridges, hoppers, tanks and silos.

variants

RC3D-A	A single, integrated 18m cable with flying leads.	Designed for simple, direct wiring in non-daisy-chain systems.
RC3D-B	Dual M12 connectors (on load cell body).	Designed for daisy-chain installations, reducing cabling and junction boxes.
RC3D-C	Dual 1m cables with M12 male connectors.	Designed for daisy-chain installations, reducing cabling and junction boxes. The 1m cables offer greater installation flexibility.

key features

Stainless steel construction

30t, 40t, 50t Capacities

Certified OIML C3/C4 (Y=15k)

Certified NTEP Class III (5k)

IP68/IP69K

Hermetic Sealing

Digital Electronics & Diagnostics

RS485 Communication

Easy Calibration & Setup

Integrated Surge Protection

Rocker Column Accuracy

specifications
Variants	-	RC3D-A / RC3D-B / RC3D-C
Maximum Capacity (Emax)	t	30/40/50
Accuracy class according to OIML R60	-	(GP)	C1	C3	C4
Maximum number of verification intervals (nLC)	-	n.a.	1,000	3,000	4,000
Minimum load cell verification interval (vmin )	-	n.a.	Emax /5,000	Emax /15,000
Temperature effect on minimum dead load output (TC0)	%*RO/10C	0.0400	0.0280	0.0093
Temperature effect on sensitivity (TCRO)	%*RO/10C	0.0200	0.0160	0.0100	0.0080
Combined error	%*RO	0.0500	0.0300	0.0200	0.0180
Non-linearity	%*RO	0.0400	0.0300	0.0166	0.0125
Hysteresis	%*RO	0.0400	0.0300	0.0166	0.0125
Creep error (30 minutes) / DR	%*RO	0.0600	0.0490	0.0166	0.0125
Rated Output (RO)	counts	200,000 200 ( 0.1%*RO)
Zero balance	counts	2,000 ( 1%*RO)
Internal resolution	counts	500,000
Excitation voltage	VDC	10...12
Current consumption	mA	< 40
Converter type	-	Sigma-Delta ratiometric
Conversion rate	-	10 Hz (4.7 to 80 Hertz, factory configuration only)
Digital filter	-	Rolling Average (4, 9, 16, 25 samples)
Asynchronous interface	-	RS485A half duplex, multidrop with network address, 2,400...38,400 baud. Baud rate, data bits, parity and data output are programmable
Number of bus addresses	n	52
Safe load limit (Elim)	%*Emax	200
Ultimate load	%*Emax	300
Compensated temperature range	C	10...+40
Operating temperature range	C	40...+60
Load cell material	-	stainless steel 17-4 PH (1.4548)
Sealing	-	complete hermetic sealing; cable entry sealed by glass to metal header
Protection according EN 60 529	-	IP68 (up to 2m water depth) / IP69K
Packet weight	kg	3.3 (30t), 3.6 (40t), 4.5 (50t)
The limits for Non-Linearity, Hysteresis, and TCRO are typical values. The sum of Non-linearity, Hysteresis and TCRO meets the requirements according to OIML R60 with pLC=0.8.
