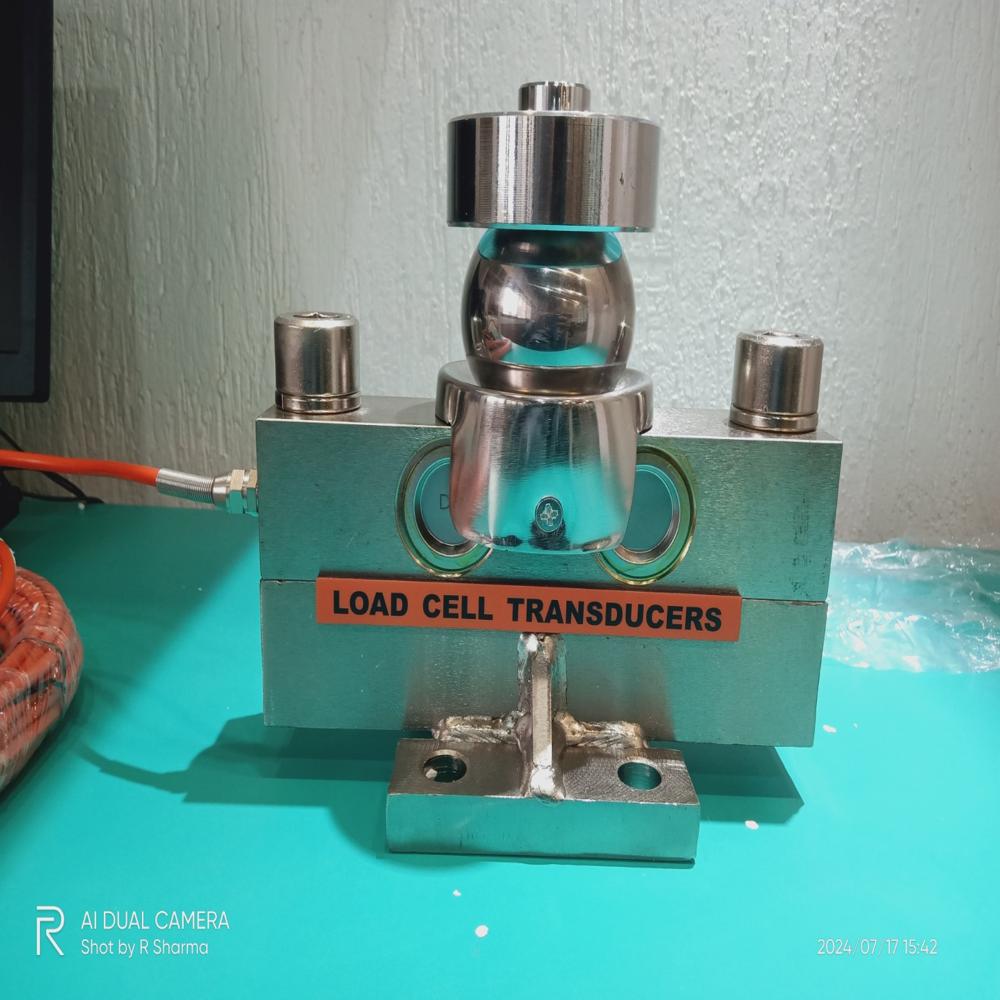

cup & ball type Double Ended Load Cell

Name: cup & ball type Double Ended Load Cell
Brand: SWASTIK SYSTEMS & SERVICES
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

cup & ball type Double Ended Load Cell Specification

Product Type
Double Ended Load Cell

Usage
weighbridge

Weight
18 Kilograms (kg)

Color
silver

Resistance
Input: 700 2, Output: 703 2

Output
Analog Voltage

Theory
Strain Gauge Based

Type
Cup & Ball Type Double Ended Load Cell

Accuracy
0.03% to 0.05% F.S.

Operating Voltage
5V to 15V DC (Excitation)

Output Voltage
2.0 mV/V 0.1% F.S.

Compensated Temperature
+10C to +50C

Storage Temperature
-30C to +80C

Operating Temperature
-20C to +70C

Capacity Range
10t, 20t, 30t, 40t, 50t

Safe Overload
150% of Rated Capacity

Material
High Alloy Steel, Nickel Plated / Stainless Steel

Hysteresis
0.03% F.S.

Protection Class
IP68

Creep (30 min)
0.03% F.S.

Repeatability
0.02% F.S.

Non-Linearity
0.03% to 0.05% F.S.

Application
Truck Scales, Industrial Weighbridges, Axle Weighing Systems, Hopper Scales

Zero Balance
1.0% F.S.

Ultimate Overload
200% of Rated Capacity

cup & ball type Double Ended Load Cell Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About cup & ball type Double Ended Load Cell

Double Ended Load Cell.

Transport and High Way Authority

Application:

Truck Weighing
Wagon Tripller
Weigh Bridge Scale
This suits to truck,track,tank and hopper weighing
This cell is designed to withstand rigorous shock loads prevailing in heavy duty weighments

Details:

This load cell can be supplied with suitable mounting module WM-V, upon request
Apart from weighing, this also finds applications in tensile testing

Unmatched Durability and Reliability

Manufactured using high alloy steel or stainless steel and featuring a nickel-plated finish, this double ended load cell is engineered to endure harsh conditions. Its IP68 protection safeguards it against dust and water ingress, making it dependable for outdoor and industrial settings. The load cell's robust design supports heavy loads while maintaining stable and accurate readings over extended use.

Superior Accuracy for Demanding Applications

With an accuracy class of 0.03% to 0.05% F.S. and minimal non-linearity, hysteresis, and creep, the cup & ball type load cell ensures precise measurements essential for weighbridges, trucks, and industrial scales. Its strain gauge technology guarantees reliable analog output, allowing for consistent data in critical weighing processes where accuracy is paramount.

Versatile Installation and Usage

The load cell operates with input voltage ranges from 5V to 15V DC and adapts to a wide temperature span, making it suitable for various environments and climates across India. Its double ended structure provides stability and easy integration into new or existing systems, streamlining the installation process for dealers, installers, and end users alike.

FAQ's of cup & ball type Double Ended Load Cell:

Q: How is the Cup & Ball Double Ended Load Cell typically installed in industrial weighing systems?

A: The load cell is installed between mounting cups in truck scales, weighbridges, or hopper scales, ensuring secure load transfer. Its double ended design provides stability, and the cup and ball mechanism allows for minor lateral movements, accommodating dynamic loads commonly encountered in industrial applications.

Q: What benefits does the high alloy steel or stainless steel construction provide?

A: The use of high alloy steel or stainless steel enhances the load cell's strength, corrosion resistance, and durability, making it suitable for harsh and demanding industrial environments where long-term reliability is crucial.

Q: Where is this load cell most effectively utilized?

A: This double ended load cell is especially effective in truck scales, industrial weighbridges, axle weighing systems, and hopper scales-applications requiring precise load measurement and high durability under heavy use.

Q: How does the IP68 protection class benefit the user?

A: The IP68 rating certifies that the load cell is fully protected against dust and can withstand prolonged immersion in water, which is vital for use in outdoor or washdown environments where exposure to moisture is frequent.

Q: What is the standard output voltage and how is it measured?

A: The output is an analog voltage signal of 2.0 mV/V 0.1% of full scale. This is typically measured by a compatible weighing indicator or data acquisition system, converting the signal into a readable weight value.

Q: When should the load cell's overload specifications be considered during operation?

A: Operators should be mindful of the 150% safe overload and 200% ultimate overload limits. Exceeding these thresholds risks damaging the load cell, so supplied equipment and processes must remain within these specified capacities to ensure longevity and safety.
