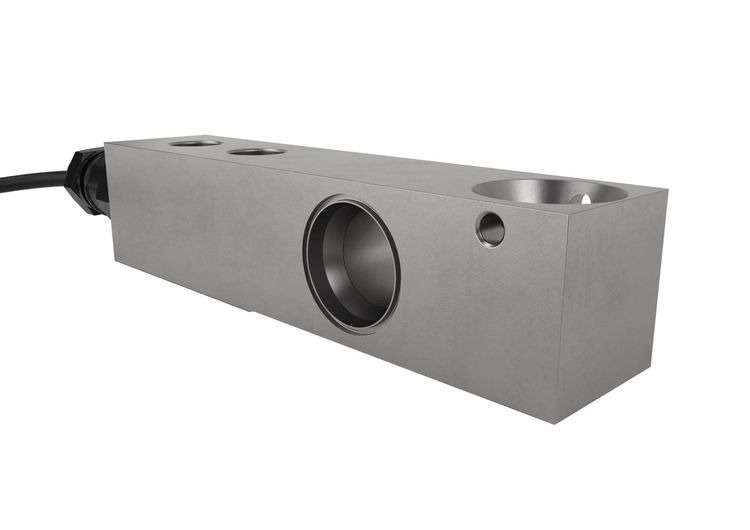

Beam Load cell

Name: Beam Load cell
Brand: SWASTIK SYSTEMS & SERVICES
Price: 22000.0 INR
Availability: InStock

Price 22000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Beam Load cell Specification

Application
Industrial platform scales, pallet truck scales, vessel and tank weighing systems

Product Type
Beam type

Material
Alloy steel

Power
.. Volt (v)

Weight
2 Kilograms (kg)

Usage
Industrial platform scales, pallet truck scales, vessel and tank weighing systems

Capacity
0.5-10 Ton

Color
silver

Output
Switching Transducer

Type
Beam type

About Beam Load cell

SB14 beam load cell

product description

The SB14 is a high accuracy, low profile bending beam available in a wide range of capacities. Full stainless steel construction and complete hermetic sealing ensures reliable accuracy and robustness in harsh industrial applications. The SB14 is the ideal choice for high accuracy weighing platforms due to the blind-hole load introduction arrangement when combined with the self-aligning feet.

applications

Industrial platform scales, pallet truck scales, vessel and tank weighing systems.

key features

Stainless steel construction

Hermetically sealed to IP68

Wide capacity range from 500lb to 10,000lb (227kg to 4,536kg)

High accuracy

Unique blind loading hole

High input resistance

Calibration in mV/V/

approvals

OIML approval to C3 and C3 MI6 (Y=11,500)

NTEP approval to 5,000 intervals, Class III (for 500lb to 5,000lb) for multiple load cell applications

ATEX hazardous area approval for Zone 0, 1, 2, 20, 21 and 22

FM hazardous area approval

accessories + options

Compatible range of hardware

Compatible range of electronics

Y = 23,000 for C3 and C3 MI6 (for 500lb to 5klb)

Stainless steel cable gland

specifications
Maximum capacity (Emax)	klb	0.5 / 1 / 2.5 / 5 / 10*	0.5 / 1 / 2.5 / 5
Metric equivalents (1 lb=0.45359 kg)	kg	227 / 454 / 1 134 / 2 ,268 / 4 ,536	227 / 454 / 1 ,134 / 2, 268
Accuracy class according to OIML R60	(GP)	C3	C3 MI 6
Maximum number of verification intervals (nmax)	n.a.	3,000	3,000
Minimum load cell verification interval (vmin)	n.a.	Emax /11,500
Temperature effect on minimum dead load output (TC0)	RO/10C	0.0400	0.0122
Temperature effect on sensitivity (TCRO)	RO/10C	0.0200	0.0100
Combined error	RO	0.0500	0.0200	0.0180
Non-linearity	RO	0.0400	0.0166	0.0166
Hysteresis	RO	0.0400	0.0166	0.0083
Creep error (30 minutes) / DR	RO	0.0600	0.0166	0.0083
Optional Min.load cell verification interval (vmin opt)	n.a.	Emax /23, 000
Optional Temp. effect on min. dead load output (TC0 opt)	RO/10C	n.a.	0.0061
Rated Output (RO)	mV/V	2 0.1%
Calibration in mV/V/ (A...I classified)	%	0.05 ( 0.005)
Zero balance	RO	5
Excitation voltage	V	5...15
Input resistance (RLC)		1 ,100 50
Output resistance (Rout)		1 ,000 2
Insulation resistance (100 V DC)	M	5, 000
Safe load limit (Elim)	Emax	200
Ultimate load	Emax	300
Safe side load	Emax	100
Compensated temperature range	C	10...+40
Operating temperature range	C	40...+80 (ATEX 40...+60)
Load cell material	stainless steel 17-4 PH (1.4548)
Sealing	cable entry hermetically sealed by glass to metal header
Protection according EN 60 529	IP68 (up to 2m water depth) / IP69K
Packet weight	kg	1.2 (500-5,000lb), 2.44 (10,000lb)
Type	L1	L2	L3	L4	L5	H1	H2	H3	H4	H5	W	D1	D2	D3	D4	Mounting bolts	Torque *
500/1000 lb	133.4	12.7	76.2	25.4	59.9	31	28.8	15	4	15	30	18	13	13.5	M12	M12 8.8	90 Nm
2500 lb	133.4	12.7	76.2	25.4	59.9	31	30.5	15	4	15	30	18	13	13.5	M12	M12 8.8	90 Nm
5000 lb	133.4	12.7	76.2	25.4	59.9	31	30.5	15	4	15	30	18	13	13.5	M12	M12 10.9	120 Nm
10,000 lb	177.8	19.1	95.3	38.1	92.7	43.6	38.1	20.5	8	20.1	43	25	21	21.5	M20	M20 8.8	400 Nm

wiring

The load cell is provided with a shielded, 4 conductor cable (AWG 24).

Cable jacket: polyurethane

Cable length: 3 m for SB14-500lb to 5,000lb, 4.5 m for SB14-10,000lb

Cable diameter: 5 mm

The shield is floating (On request the shield can be connected to the load cell body)

Versatile Solution for Industrial Weighing

Engineered for compatibility with platform scales, pallet trucks, and tank weighing systems, this all-purpose beam load cell adapts effortlessly to varied industrial setups. Its precision output ensures accurate readings, making it indispensable for heavy-duty and routine weighing tasks alike. Crafted from alloy steel, it offers resilience in tough environments.

Durable Construction and High Capacity

Made from premium alloy steel, the beam load cell resists wear and tear, guaranteeing longevity even under rigorous use. Its impressive capacity range of 0.5 to 10 tons accommodates light to heavy loads, making it suitable for multiple industrial needs. The silver finish not only adds a clean look but also provides additional protection.

FAQ's of Beam Load cell:

Q: How can the beam load cell be integrated into industrial platform scales?

A: The beam load cell can be mounted beneath the platform of industrial scales, connecting to the scale's indicator system. Its switching transducer output makes it compatible with most standard weighing electronics, ensuring easy integration into existing setups.

Q: What are the primary benefits of using an alloy steel beam load cell in industrial environments?

A: Alloy steel construction provides enhanced strength and resistance to environmental stress, ensuring reliable performance in demanding industrial settings. This results in longer service life and consistent measurement accuracy.

Q: When should I consider using this load cell for tank and vessel weighing applications?

A: This beam load cell is ideal when precise weight measurement is required for tanks or vessels holding bulk materials. Its high load capacity and robust design make it suitable whenever stability, durability, and accuracy are critical.

Q: Where is this type of beam load cell commonly installed?

A: Beam load cells of this kind are typically installed in the weighing mechanisms of platform scales, within the forks of pallet truck scales, or beneath vessels and tanks for industrial weighing purposes.

Q: What is the process for installing a beam load cell in pallet truck scales?

A: Installation involves securely positioning the load cell in the designated compartment of the pallet truck scale, connecting it to the weighing system, and ensuring proper calibration to maintain accurate outputs.

Q: How does the switching transducer output benefit industrial users?

A: The switching transducer output allows for efficient signal transmission to weighing systems, resulting in real-time readings and quick response, which is crucial for industrial operations requiring precise measurements.
