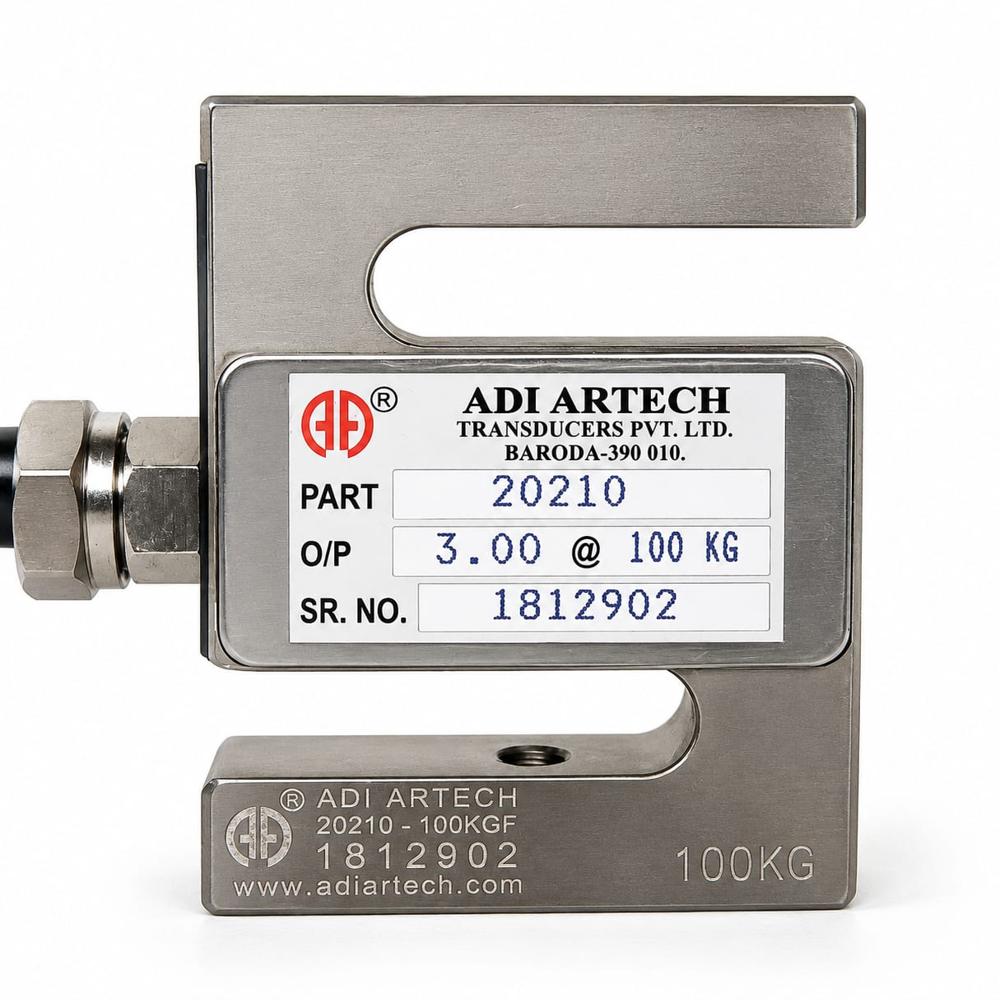

model 20210 S-BEAM LOAD CELL

           FEATURES:

        20 Kgf. to 20000 Kgf. capacities available

        High Alloy Tool Steel construction for resistance against shock and overload

        Complete Environmental Protection IP67 class

        Standardised output (3.0 0.25%) available on request

APPLICATIONS:

        Conversion of Mechanical Scale to Electronic

        Tank, Hopper & Bag Weighing

        Hanging Scale & Crane Scale

        Force Measurement Tension & Compression

        Dynamometer

        Industrial Automation

DESCRIPTION:

Ultra Precision Strain Gage based S-beam Load Cell is versatile, compact and rugged. It is used for tension measurements, tensile testing, weighing, industrial automation and research applications. It is universal Load Cell suitable for both tension and compression modes

PERFORMANCE SPECIFICATION:

Standard Capacities (Kgf.)   :   20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 750

(Tf)                                           :   1, 1.5, 2, 2.5, 3, 5, 7.5, 10, 15, 20

Excitation Voltage                : 10 VDC Maximum 15 VDC

Nominal Output                    : 3.0 mV/V

Non-Linearity                         : < 0.025% FSO (Full Scale Output)

Hysteresis                               : < 0.02% FSO

Non-Repeatability                 : < 0.01% FSO

Creep (30 minutes)               : < 0.03% FSO

Zero Balance                          : 1.0% FSO

Input Resistance                   : 392 15 Ohms

Output Resistance                : 350 3 Ohms

Insulation Resistance           : > 1000 Mega Ohms at 50 VDC

Safe Overload                       : 150% of Rated Capacity

Ultimate Overload               : 250% of Rated Capacity

Allowable Side Load            : 50% of Rated Capacity

Temperature Compensated Range   : 060C

Temperature Effect on Output           : < 0.0015% FSO/C

Temperature Effect on Zero                : < 0.0020% FSO/C

Deflection                                                : < 0.5 mm at FSO

Tightening Torque                                  : Please refer table on back page

Finish & Construction                            : Electroless Nickel Plated Tool Steel

Environmental Protection Class           : IP67

ELECTRICAL TERMINATION
