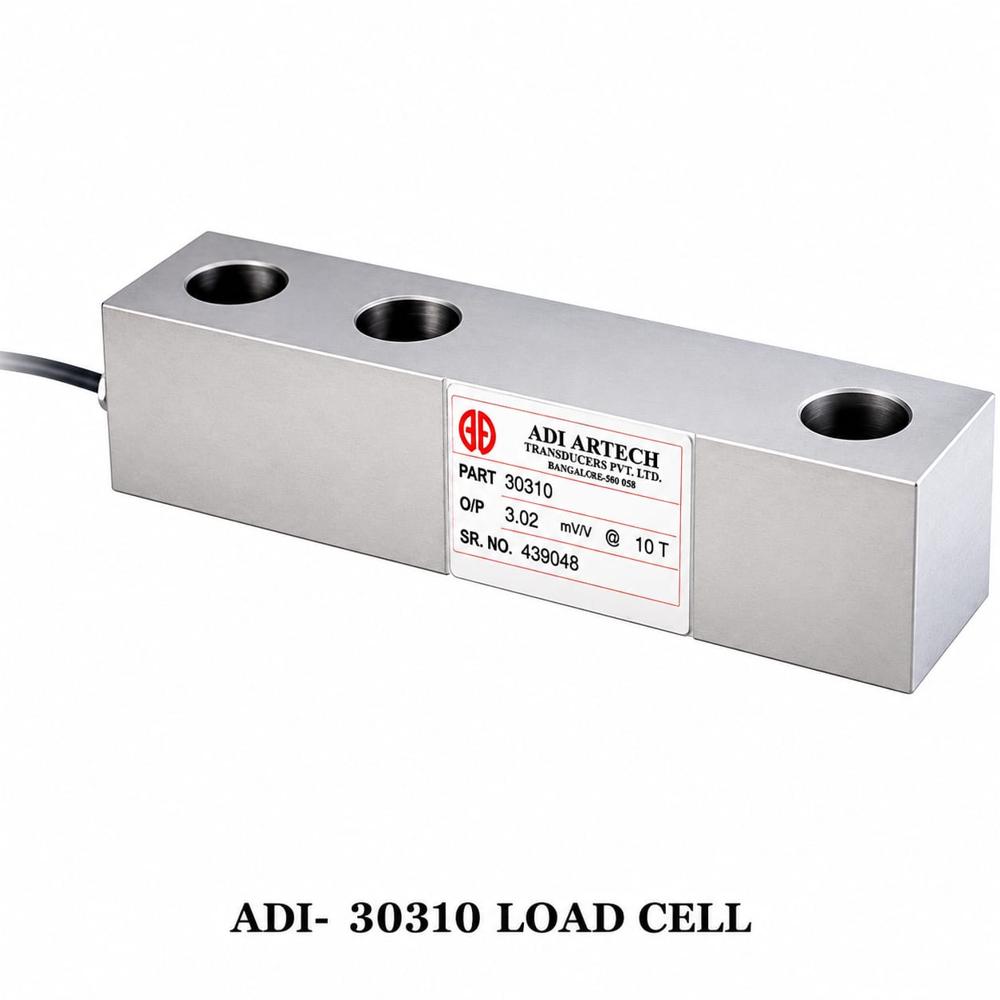

SS RECTANGULAR SHEAR BEAM LOAD CELL

About SS RECTANGULAR SHEAR BEAM LOAD CELL

model 30310/30310-SS RECTANGULAR SHEAR BEAM LOAD CELL FEATURES:

100 Kgf. to 10000 Kgf. Capacities offered

Complete Environmental Protection - IP67 Class

Standardized output (3.0 0.25%) available on request

Also available in stainless steel construction Model - 30310-SS, suitable for hygienic applications like Food, Dairy & Pharmaceutical Industries and Corrosive Chemical

APPLICATIONS:

Low Profile Floor Scales

Tank, Hopper & Bag Weighing

Force & Tension Measurement

Industrial Automation

Pallet Scale

DESCRIPTION:

This is a single ended Shear Beam, Strain Gage based, Load Cell designed for Multiple use in low profile platform scales & in tank, bin and hopper weighing systems. It is constructed from high alloy Tool Steel for excellent resistance to shock and overload. The full sealed gasket moisture ingress for use in wash-down areas and is Electroless Nickel plated for corrosion resistance. It is low cost ideal Load Cell for industrial automation applications. Model 30310-SS is provided in Hardenable Stainless Steel-17-4 PH Construction.

PERFORMANCE SPECIFICATION:

Standard Capacities (Kgf.) : 100, 150, 200, 250, 300, 500, 750

(Tf) : 1, 1.5, 2, 2.5, 3, 5, 7.5, 10

Excitation Voltage : 10 VDC - Maximum 15 VDC

Nominal Output : 3.0 mV/V

Non-Linearity : < 0.025 % FSO (Full Scale Output)

Hysteresis : < 0.02 % FSO

Non-Repeatability : < 0.01 % FSO

Creep (30 minutes) : < 0.03 % FSO

Zero Balance : 1.0 % FSO

Input Resistance : 390 3.5 Ohms

Bridge Resistance : 350 3.5 Ohms

Insulation Resistance : > 1000 Mega Ohms at 50 VDC

Safe Overload : 150 % of Rated Capacity

Ultimate Overload : 300 % of Rated Capacity

Allowable Side Load : 50 % of Rated Capacity

Side Load Discrimination : 500 : 1

Temperature Range : 0-60 C

Compensated Range

Temperature Effect on Output : < 0.0015 % FSO/C

Temperature Effect on Zero : < 0.0020 % FSO/C

Deflection : 0.5 mm at FSO

Tightening Torque : Please refer table on back page

Finish & Construction :30310 - Electroless Nickel Plated Tool Steel

30310-SS - Hardenable Stainless Steel-17-4 PH

Environmental Protection Class : IP67
